FUEL LEVEL SENSORS

One of the most important pieces of information given to us by the dashboard of a car or articulated lorry, or even of a boat or a self-propelled machine, is the amount of fuel in the vehicle's tank. Mont.El's fuel level sensors ensure constant and precise measurement, thanks to the company’s extensive construction experience and patents filed.


B9

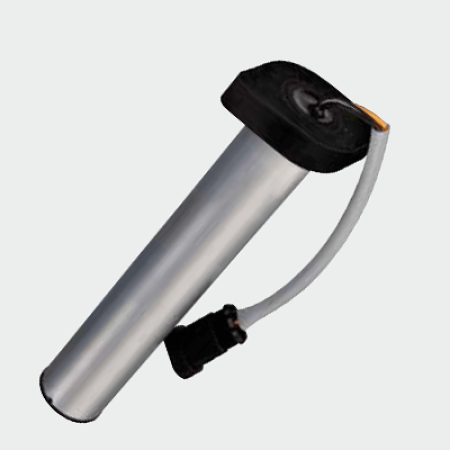

2-screw fixation sensor

2-screw fixation sensor
B9

2-screw fixation sensor

Fuel level sensor available in 28 lengths, up to 684 mm. Assembly with two screws. Assembly possible both at the bottom and at the top of the tank. Maximum versatility of use.

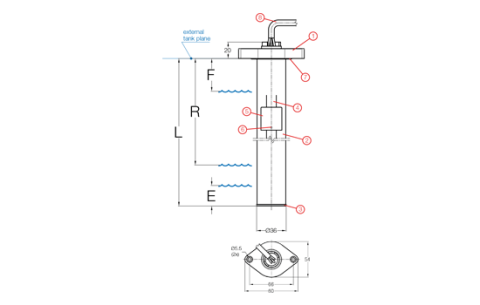

Components
1 - Flange
2 - Body
3 - Stopper
4 - Printed circuit board
5 - Float
6 - Sliding contact
7 - Outer sea
8 - Wiring (L=200 mm)



Compatible fuels

Unleaded petrol, diesel, agricultural diesel and any non-conductive fuel.
